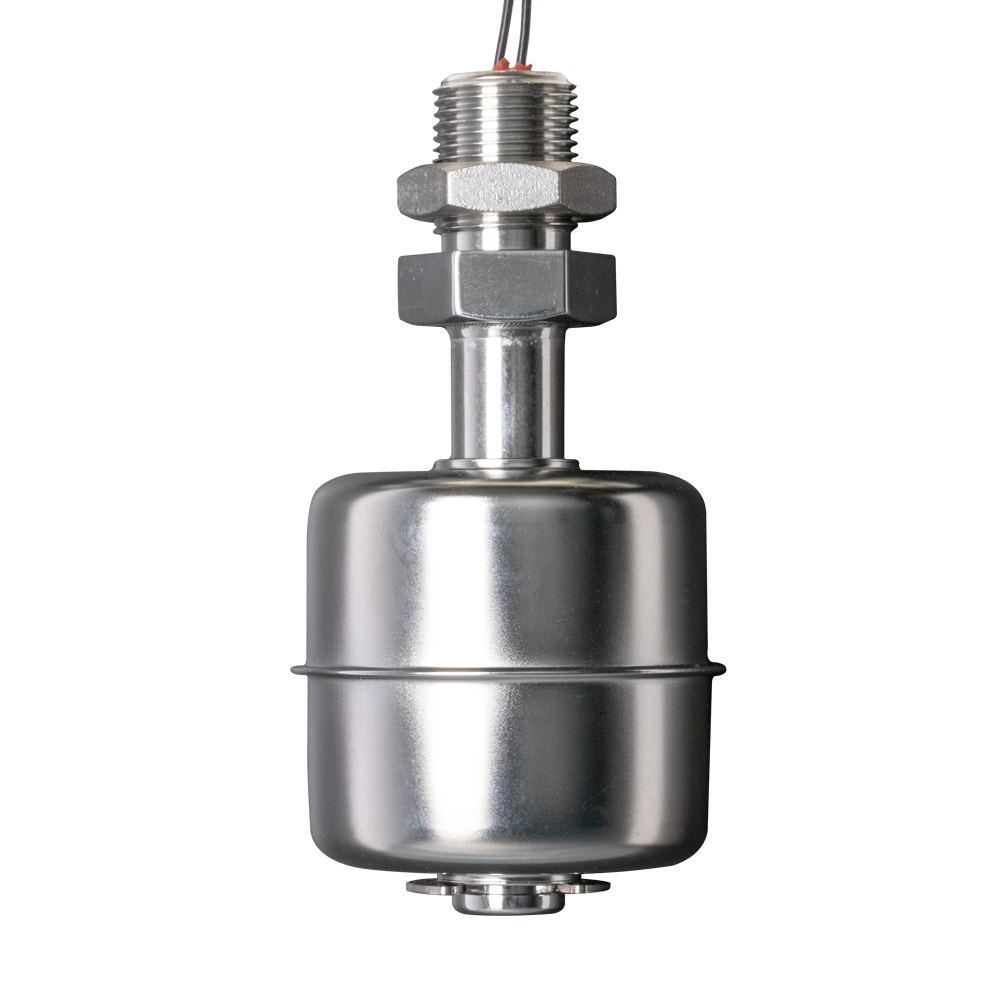

RFS off-the-shelf type / Float level switch RFS-6
- off-the-shelf type
- Metal housing
- Vertical threaded
- Heat resistant housing
- Light specific gravity type
- For Water
- For Oil
- For Chemical
Vertical through-hole, Resistant to oil, up to 200 deg. Φ50
Application
- Kitchen equipment
Specifications
| Model | RFS-6 | |
|---|---|---|
| Material | Stem | SUS316 |
| Float | SUS316L | |
| Stopper | SUS316 | |
| Nat | SUS316 | |
| Specs. | Temperature Range(Atm.Pressure) | -40℃〜+200℃ |
| Pressure Resistance(Room Temp.) | 1MPa | |
| Float Specific Gravity | 0.55±0.05 | |
| Electric Specs. | Max.Contact Capacity | 50W DC/AC |
| Max.Voltage | 300V DC/AC | |
| Max.Current | 0.5A DC/AC |

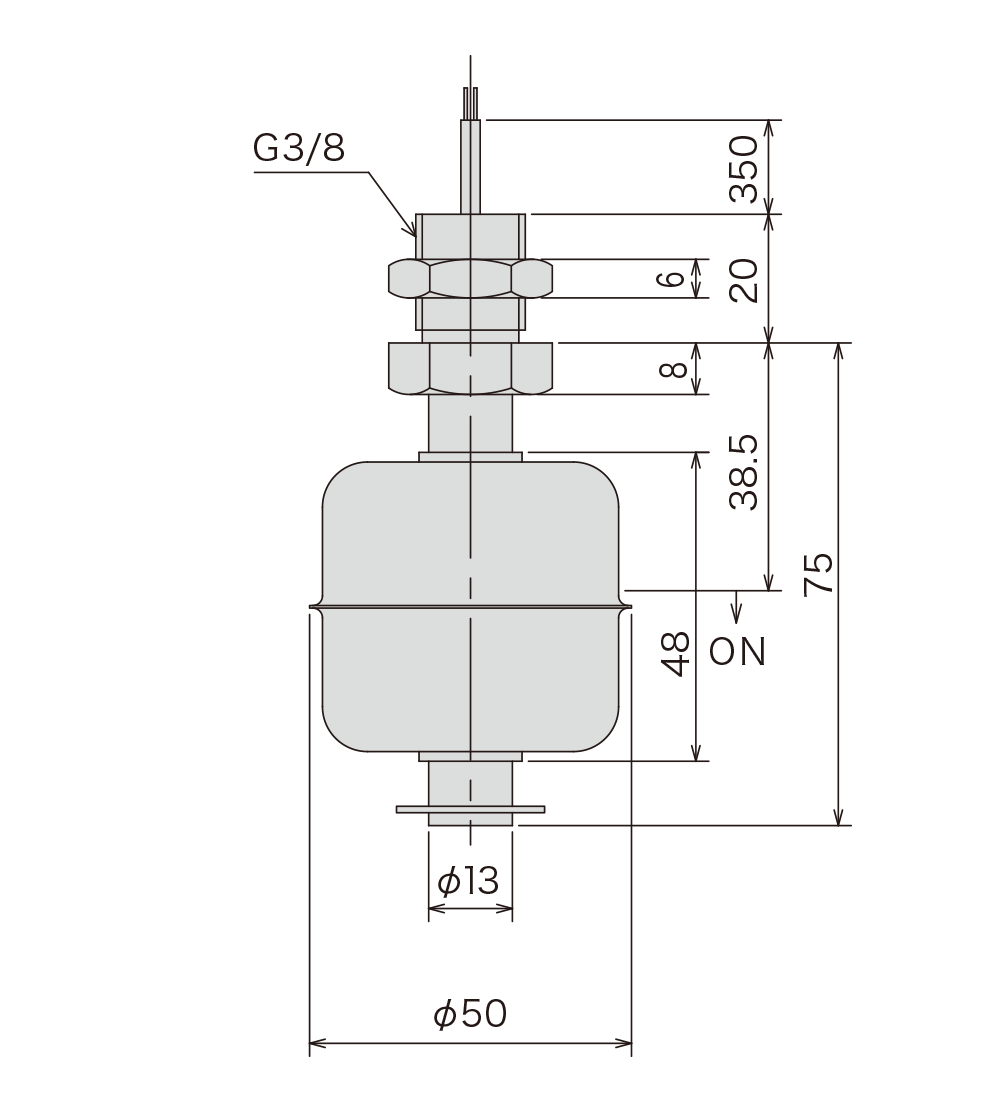

Dimension
